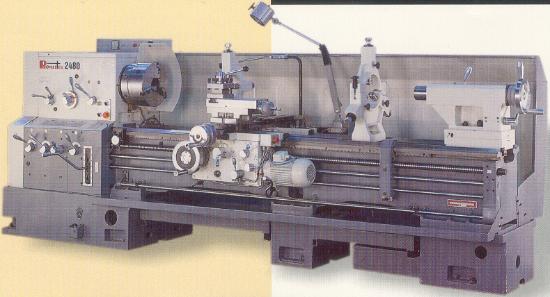

Promaster 2400   Click on image to see enlargement Spindle Nose Headstock Headstock Interior Feed Box Selector Electrical Enclosure Electrical Enclosure Inside Bed Width and Bed Ways Webbing and Ribbing Track-Link Type Cable Carriers Carriage and Cross Slide Inch/Metric Handwheel Dials Lower Carriage - Feed Rods and Limit Switches Tailstock Steady and Flow Rests 12" Universal Chuck 4-Jaw Independent Chuck Worklamp   Features: 20 Horsepower main spindle drive Fully clutched headstock for spindle forward and spindle reverse Electro-magnetic spindle brake for controlled fast stops with full workpiece loads between centers Convenient base mounted electirc footswitch temporarily disengages spindle brake for spindle jogging functions Big thru spindle bore - 4.1" I.D. - with huge D1-11 camlock spindle nose Heave Timken type precision taper roller bearings All reliable American and/or European electrics to I.E.C. standards. Popular Square-D and/or Telemecanique components used for easy replacement anywhere in USA should servicing be needed. Safety low voltage elctric operator's controls. A choice of 230 Volt or 460 Volt primary electical configurations available (select one) Power rapid traverse for both longitudinal and cross Massive triple pedestal base on 80" model and quadruple pedestal base for 120" model providing a rock solid platform for years of precision turning Huge Meehanite cast iron bedway with high frequency induction hardened and precision ground triple-V and flat ways that support an oversized rugged carriage assembly Turcite-B lined carriage longitudinal ways and cross slide ways for reduced stick/slip friction Inch/Metric dual dials on carriage, cross slide and top compound Safety type disengaging handwheels on longitudinal and cross slide movements 4-way indexing toolpost supports up to 1.25" square toolholders T-slotted rear cross slide for mounting optional rear tool holder or other tolling accessory Adjustable feed stops; standard 6 position longitudinal; single position micrometer; and optional 4 position cross Skyward facing feed/thread chart for easier operator selection and handle placement of feeding and threading functions Complete coolant system Halogen type worklamp Full length headstock height rear chip and coolant splash guard Front slide out chip collection pans for easier chip disposal Robust tailstock design supports ultra rigid 3.55" diameter tailstock quill that travels up to 10"; MT5 inside taper Tailstock-to-carriage coupler for power drilling Heavy roller jaw steady rests and follow rests 60", 80", and 120" C-C models Standard Accessories & Equipment 12" diameter 3-jaw universal chuck with D1-11 mounting 22" 4-jaw independent chuck with D1-11 mounting 22" slotted faceplate Thread chasing dial indicator Complete coolant system Halogen type worklamp Steady rest - roller jaw type; 0.4 to 7.8" diameter capacity Follow rest - roller jaw type; 0.4 to 5.;9" diameter capacity Tailstock-to-carriage coupler MT5/MT3 reduction sleeve Live center Dead center Assorted tools; wrenches, spanners, lube pump Micrometer longitudinal feed stop Foundation and leveling bolts Optional Equipment Taper turning attachment max. stroke setting 20", +- 15° Rear toolholder black for cross slide holds 2 square tools Larger capacity steady rest; 7.8" - 15.7" range Larger capacity follow rest; 5.7" - 9.8" range Acu-rite digital readout installed           Main Specifications   2400 Promaster Height of centerline above the floor inch 45.6 Swing over bed inch 24.8 Swing over cross slide inch 15.75 Length of gap from spindle face inch 14 Swing over gap inch 33 Length of gap in front of face plate inch 10 Maximum main spindle torque Nm 2000 Steady rests:       Standard roller jaw type-min/max capacity inch Ø0.4 - Ø7.8   Optional roller jaw type-min/max capacity inch Ø7.8 - Ø15.7 Follow rests:       Standard roller jaw type-min/max capacity inch Ø0.4 - Ø5.9   Optional roller jaw type-min/max capacity inch Ø5.7 - Ø9.8 Distance between centers, approximate inch 60, 80, 120 Maximum workpiece weight     - at headstock lbs 2000 - between centers unsupported lbs 2500 - between centers with 1 stedy rest lbs 3600 Overall installed power kVA 16.5 BED     Overall length     60" between centers inch 130 80" between centers inch 150 120" between centers inch 190 Overall width inch 16.5 Hardness of bedways HB 400-420 HEADSTOCK     Spindle nose-flange type   D1-11 Camlock chuck mounting Spindle nose-flange type   MT 115 Hole diameter through spindle inch Ø4.1 Spindle speeds number   12 Spindle speed range RPM 31.5 - 1400 Type of clutches -   Mechanical Type of brake -   Electromechanical Lubrication   Gear pump FEED GEARBOX - Range Per Revolution     Longitudinal Inch Feeds: Number   Range   inch/r 32 0.00275 - 0.03937 Cross Slide Inch Feeds: Number   Range   inch/r 32 0.00137 - 0.01968 Metric Threads:: Number   Range   mm 53 0.5 - 112 Threads per inch: Number   Range   T.P.I 64 56 - 1/4 Diametral Pitch: Number   Range   DP 32 224 - 1 Module Threads: Number   Range   MOD 40 0.125 - 28 SLIDES AND SUPPORTS SPECIFICATIONS     Cross slide total travel inch 13 Cross slide screw pitch TPI 5 Travel of cross slide/graduation on cross slide hand wheel inch 0.001 Travel of cross slide/revolution of the hand wheel inch 0.4 Travel of compound slide/grad. on compound hand wheel inch 0.001 Travel of compound slide/revolution of the hand wheel inch 0.2 Compound rest total travel inch 5.1 Lathe centerline to top surface of compound distance inch 2.6 Adjustable stops number - cross   4 Antifriciton lining   TURCITE-B CARRIAGE     Travel of carriage per graduation on carriage apron hand wheel inch 0.01 Travel of carriage per revolution on carriage apron hand wheel inch 1.3 Adjustable feed stops number - Longitudinal   6 Lubrication type   Piston pump Antifriction lining   TURCITE-B TAILSTOCK     Travel of tailstock barrel, approximate inch 10.0" Diameter of tailstock barrel inch 3.55 Taper of tailstock center   MT 5 Cross travel of tailstock (setover) inch +-0.4 Travel of tailstock - graduations of tailstock hand wheel inch 0.002 Travel of tailstock barrel - revolution of hand wheel inch 0.2 MAIN DRIVE AND PRIMARY ELECTRONICS     Asynchronous 3-phase motor-type HP 20 Primary electric source (choose one)    230V/460V 3Ph/60Hz Spindle drive input configuration   5 V-belt POWER RAPID TRAVERSE DRIVE SPECIFICATIONS HP 1.5  Overall height, approximate inch 55 Overall width, approximate inch 65 Overall length, approximate 60" between centers 80" between centers 120" between centers   inch inch inch   134 155 195 Overall weight, approximate 60" between centers 80" between centers 120" between centers   lbs lbs lbs   7400 8100 9200
