Features:
A.
Safety trigger switch on/off
B. 1/3 HP motor
C. Solid, gear driven construction with high quality, precision
bearings
D. Electronic, infinitely variable speed control
E. Formed and welded solid steel base
F. Graduated protrator scale for milter cuts (0 - 45 degrees)
G. Adjustable material stop
H. Heavy duty clamping vise
I. Quick set, adjustable sliding blade guide
J. Quick, convenient band tension adjustment
|
| |
| Standard

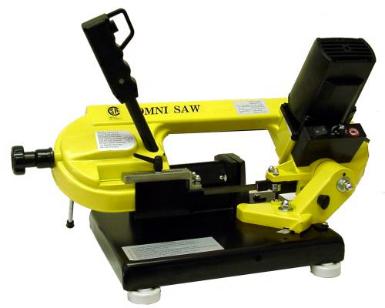

Equipment: OMNI-SAW #OS - 001 with general purpose saw
blade, adjustable material stop, operation and parts manual
1/3 HP motor 110 V electrics. |
|
| |
Specifications |
|
| |
| Blade
speed (infinitely variable) |
98
- 295 SFPM
|
| Adjustable
cutting angle |
0
- 45 degrees
|
| Cutting
capacity (at 90 degrees) |
Roung
3.34"
|
|
Rect.
3.34"x4.00"
|
| Cutting
capacity (at 45 degrees) |
Round
2.75"
|
|
Rect.
2.50"x2.95"
|
| Motor
Electronics |
1/3
HP - 110V
|
| Space
requirements (horizontal L"xW"xH") |
26"x13"x16"
|
| Space
requirements (vertical L"xW"xH") |
26"x13"x24
1/2"
|
| Net
weight |
42
lbs.
|
| Shipping
weight |
48
lbs.
|
| Shipping
Dimensions (L"xW"xH") |
27
1/4"x18 1/4"x13 1/2"
|
|
|
| |
|
|
| |
Deluxe
Multi Purpose 3pc. Saw Blade Set |
|
|
The
special 3pc. combo set enables the operator to cut wood, platic
and various metals (including very thin materials). The 3pc. combo
set includes one each 14, 18, 24 tooth blades.
|
| |
|
|
| |
| 3pc.
OMNI SAW Blade set |
#OS
- 1000 |
| 14
Tooth Individual blade |
#OS
- 114 |
| 18
Tooth Individual blade |
#OS
- 118 |
| 24
Tooth Individual blade |
#OS
- 124 |
|
|
|
