Click on pic to see Features

Description:
The super precision TMP Spindle has a T.I.R. of .0001" enabling the TMD Drill to accurately drill very samll holes ranging from .002" to 5/32" diameter. All TMD motors, pulleys and spindles are high speed dynamically balanced to provide extremely smooth operations up to 30,000 RPM.

Optional Accessories:
Ablrecht Keyless Drill Chucks, infinitely variable speed control (0-30,000 RMP) with 220/110V 50/60 Cycle Capabilities, Foot Pedal, Dial Depth Gauge, Vises, Drills Bits, etc.
SPECIFICATIONS TMD 100 SERIES TMD 1000 SERIES
MAX. WORK HEIGHT 5 3/4” 5”
DIS. CHUCK CENTER TO MOUNTING COLUMN 2 1/2” 8”
SPINDLE TRAVEL 1 1/4” 1 1/4”
SPINDLE SPEEDS (3) 9,500 17,000 30,000 RPM 9,500 17,000 30,000 RPM
TABLE SIZE 4” X 4”
BASE DIMENSIONS (LxWxH) 11 3/4” x 7” x 2 3/4” 11 3/8” x 6 7/8” x 1 1/2”
OVERALL DIMENSIONS (LxWxH) 11 3/4” x 7” x 15 1/2” 13 1/8” x 7 1/8” x 18 1/2”
NET WEIGHT 23 LBS 25 LBS
SHIP WEIGHT 34 LBS 40 LBS

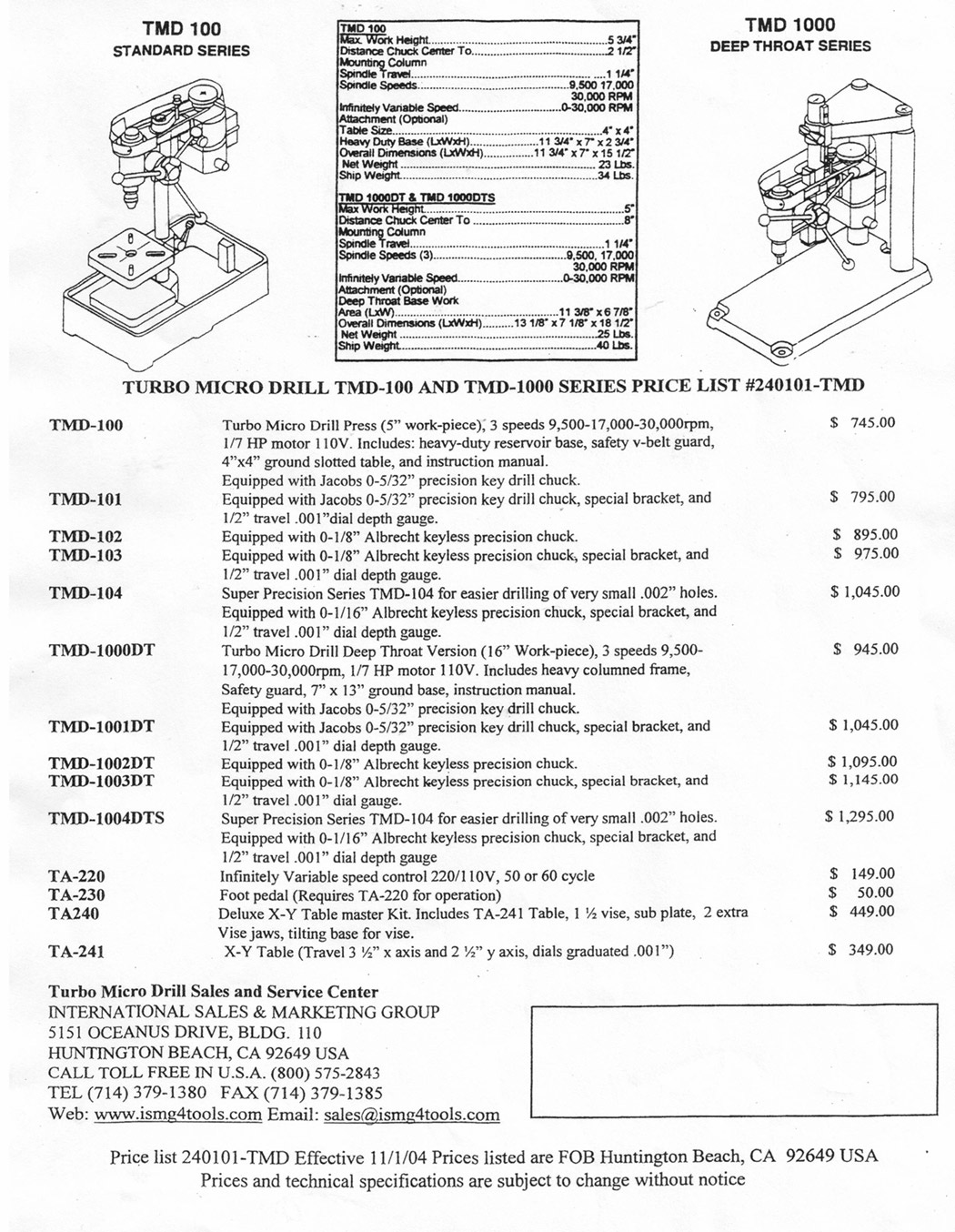

tmd price listPrintable Version Of TMD 100 Price-list
