  D2400

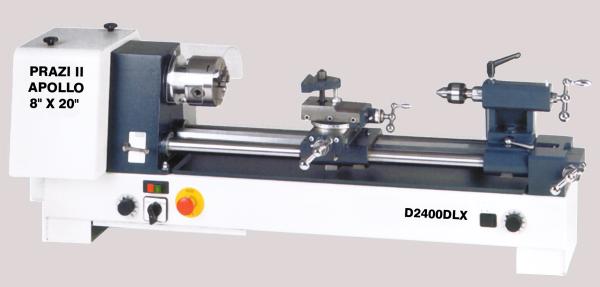

Click on Pic to Enlarge
Description:
  • toolmaker's accuracy with test report
  • with electronically adjustable motor 180 - 3000 r.p.m. equipped with a dynamic speed-adjustable main drive motor which can be adjusted by means of a potentiometer over a wide range of cutting speed
  • with a single-phase series commutator motor in parallel flow quality with permanent number of revolutions super vision
  • right- and left-hand rotation of main spindle
  • main spindle bore Ø 20 mm
  • precision chuck
  • fixed lathe center MT2
  • automatic longitudinal advance/main spindle drive
  • change gear quadrant for threading (optional: translating gear wheels)
  • emergency OFF


Centre distance
500 mm
Centre height
110 mm
Power
1,4 kW, 230 V, 50 Hz
Spindle speed r.p.m.
45-2300
Spindle bearing
20 mm optional 30 mm
Cone in spindle nose
MT3
Ø-of chuck work
126 mm
Cross slide
110 mm
Longitudinal
58 mm
Swivel-feature of the upper slide rest
360º
Height of turning tools max.
20 mm
Cylindrical turning to 100 overhang
0,01 mm
Ø of chuck work, measured above the guiding bars
220 mm
Tail spindle's range of displacement

65 mm

Lateral displacement of the tailstock
+-10 mm
Automatic advance
0,085 optional 0, 16 mm
Thread pitch
Metric thread
Inch thread
optional
0,4-3,0 mm
10-32 G/"
Dimensions of the machine
1250x360 mm
Weight net (without packing)
65 kg
Weight gross (with packing)
95 kg
