  Powermill

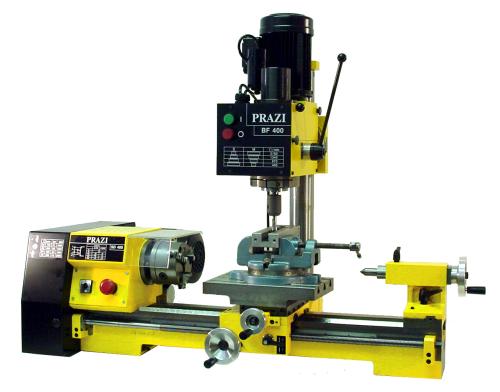

DELUXE SD400 BF400 POWERTURN LATHE MILL COMBO

The Prazi Powerturn 7.5"x16" Lathe's modern robust design offers maximum turning capabilities with high precision accuracies. Rugged vibration free headstock is equipped with Precision Ground Main Spindle that turns on large adjustable taper roller bearing. Headstock design provides quiet, smooth running operations with maximum power transmission via continuous duty motor, 9-spindle speed headstock (170-250-420-500-600-1050-1250-1800-3360 RPM) with .0002" spindle accuracy.

Extremely Rigid Ribbed Bed is made of high grade cast iron with prismatically ground V-way bed design. Apron and tailstock ride on individual V-guide ways, assuring long lasting precision, repeatability and durability. Automatic longitudinal traverse, and built-in thread cutting features enable inch, metric and module threading.

The SD400 has a complete line of optional accessories for turning, milling, drilling, boring and gear cutting and facing operations. The SD400 Lathe is best designed to use the Optional Prazi BF400 MT2 Spindle Belt Drive Powermill Attachment, which can easily be mounted to the lathe thus creating a solidly built world-class lathe mill combination precision powerhouse. The BF heavy-duty mill head swivels 360 degrees. A metric SD400 Lathe version is available upon request.

The Powerturn Lathe is manufactured and German crafted to the highest standards required by metalworking companies, workshops, maintenance and repair facilities, professional hobbyists, machinists, R&D laboratories, computer, optical, electircal industries, mechanics, technical intructors, and vocational trade schools. Lathe operations include external/interanl taper turning, boring, facing, longitudinal turning, thread cutting, drilling/milling, cylindrical grinding and more.


  LATHE SPECS INCHES
METRIC
  WORK AREA HEIGHTS   12.5"
320 MM
  SPINDLE CENTER TO COLUMN   7.10"
180 MM
  MAXIMUM DRILL CAPACITY   .400"
10 MM
  MAXIMUM MILL CAPACITY   .875"
22 MM
  COLUMN DIAMETER   2.60"
60 MM
  SPINDLE DIAMETER   2.40"
50 MM
  SPINDLE TRAVEL   2.00"
50 MM
  MILL TABLE SIZE   17.75"x6.30"
50 MMx160 MM
  LONGITUDINAL TRAVEL   11.50"
290 MM
  CROSS TRAVEL   5.50"
140 MM
  SPINDLE TAPER     MT2
  SPINDLE ACCURACY   .0002"
005 MM
  SPINDLE SPEEDS (4)
440-670-1340-2160 RPM
  MILL HEAD SWIVELS     360°
  MOTOR CAPACITY   1/3 HP
250 W
  ELECTRICS     110V
  SPACE REQUIREMENTS     23"x22"x32"
  (LxWxH)
585 MMx559MMx813MM
  NET WEIGHT   200 LBS
91 KGS
